Zephyr | 60″ Spruce Outdoor Insert

Zephyr | 60″ Spruce Outdoor Insert

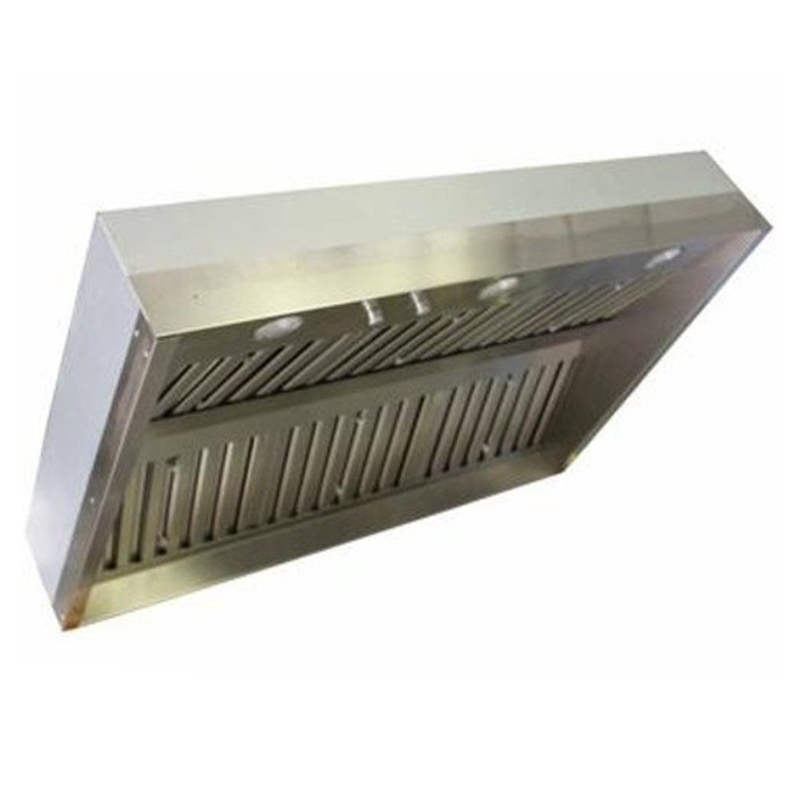

The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant 304-grade stainless steel and powerful 1,200 CFM internal blowers to handle the most intense grilling. Featuring three-speed metallic knob controls and directional halogen lighting with pro baffle filters that enhance airflow.

Features

• 304 grade stainless steel
• Professional baffle filters
• Metallic knob controls
• 1200 CFM
• Not recirculating
• 10″ Round vertical ducting
• Sones: 3.5-9
• 3 speed controls
• Dual-level lighting
• Directional lighting

Specifications

• Duct Type: Round
• Venting Type: Vented
• Blower Type: Internal
• Vent Location: Top
• CFMs: 1200 CFMs
• Outdoor Use: Yes
• Light Bulbs: 4
• Bulb Type: Halogen
• Fan Speeds: 3 or More
• Pro-Style: Yes
• Recirculating Kit: No
• Filter: Baffle
• Fan: Yes
• Light: Yes
• Volts: 120V
• Amps: 15 Amps
• Frequency: 60 Hz
• Weight: 65lbs
• Exterior Width: 60″
• Duct Diameter: 10″
• Height: 12″
• Depth: 22.5″
• Width: 58.875″

Resources

Spec Sheet

User Manual

HVAC Fittings Spec Sheet

Warranty

Limited 3 Years For Parts OnlyLimited 1 Year For Labor
